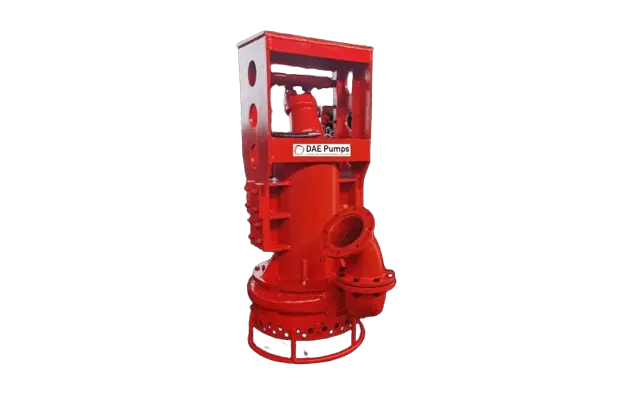

Hauler Hydraulic Sand And Slurry Pump

Advanced Hydraulic Solutions

The DAE Pumps Hauler Hydraulic Sand & Slurry Pump is a standout performer known for its durability and high efficiency, making it ideal for handling tough materials in large-scale dredging operations. With the ability to move up to 2000 cubic meters of solids per hour, this pump is engineered to tackle the most demanding tasks with ease. Its innovative non-clogging suction design can handle solids up to 3.9 inches in diameter, transporting them through a 16-inch discharge with up to 30% solid content. Part of DAE Pumps’ advanced hydraulic range, the Hauler is celebrated for its adaptability and superior performance.

3cv-Hydraulic-Pumps-For-Sand-And-Mud

Versatile and Efficient Pumping for Demanding Applications

The Hauler Hydraulic Sand & Slurry Pump is designed for versatility and efficiency, making it a critical tool for a variety of dredging tasks. It offers flexible deployment options, such as cable suspension or excavator mounting, allowing it to be tailored to different project needs. Customization options, like the addition of an agitator or water jetting ring, enhance its effectiveness in breaking down organic materials like aquatic weeds, ensuring continuous operation and extending its versatility for diverse dredging applications.

Pump and Dredge Equipment

Comprehensive Solutions for Dewatering Needs

DAE-Pumps-logo

At Mazowe Dredge, we provide more than just products—we offer complete solutions for all your dewatering challenges. Our pumps, known for their durability and efficiency, reflect our commitment to meeting diverse dewatering needs. With sealed and modular designs, our pumps ensure user-friendly operation and simplified maintenance, guaranteeing reliable performance and hassle-free servicing. This focus on functionality and customer satisfaction makes DAE Pumps the trusted choice for a wide range of dewatering applications.

Get in touch

Key Features

  • Durability and Resistance: Engineered with high abrasion resistance, ensuring a long operational lifespan in challenging conditions.
  • Size Variability: Available in sizes ranging from 3 to 16 inches, this product caters to a wide variety of applications and operational requirements.
  • High Capacity: Capable of moving up to 2000 cubic meters of solids per hour, making it perfect for large-scale, high-volume tasks.
  • Solid Handling: Efficiently handles materials with up to 30% solid content, ensuring smooth operation in tough environments.
  • Operational Depth: Designed to function effectively at depths of up to 250 meters, providing flexibility for deep dredging operations.
  • Powerful Hydraulic Motor: Delivers strong torque and ensures reliable long-term performance, even under demanding conditions.

The Hauler Hydraulic Sand & Slurry Pump is distinguished by its exceptional capacity and adaptability, making it the ideal solution for the most demanding dredging and dewatering projects.

3cv-Hydraulic-Pumps-For-Sand-And-Mud

Specifications

  • Max Capacity: 2860 GPM (650 m³/h)
  • Max Head: 89.5’ (27m)
  • Impeller Diameter / Type: 16” (405mm) / 3 Blades Closed
  • Discharge Size: 12” (300mm)

  • Solid Handling: 3.6” (90mm)

Materials

  • Casing: Spheroidal Cast Iron EN-GJS500-7 (EN 1563)
  • Motor Housing: Cast Iron EN-GJL-250 (EN 1561)
  • Wear Parts: High Chrome EN-GJN-HV600 (XCr18) (EN 12513)
  • Main Shaft: High Tensile Steel 39NiCroMo3 (AISI 9840)

Motor

  • Motor Displacement: 9.8 cu. Inch (160 cc)
  • Max. Oil Flow Rate: 72 GPM (270 l/min)
  • Max. Pressure: 4351 PSI (300 bar)
  • Power: 185 HP (475 kW)

  • Speed: 1450 RPM

Seals / Lubricant

  • Motor Side Seals: 2 Lip Seals (BUNA)
  • Impeller Side Seals: 5 Lip Seals (3 BUNA + 2PTFE) + 1 V-ring (TPU)

  • Oil type: ISO 320
